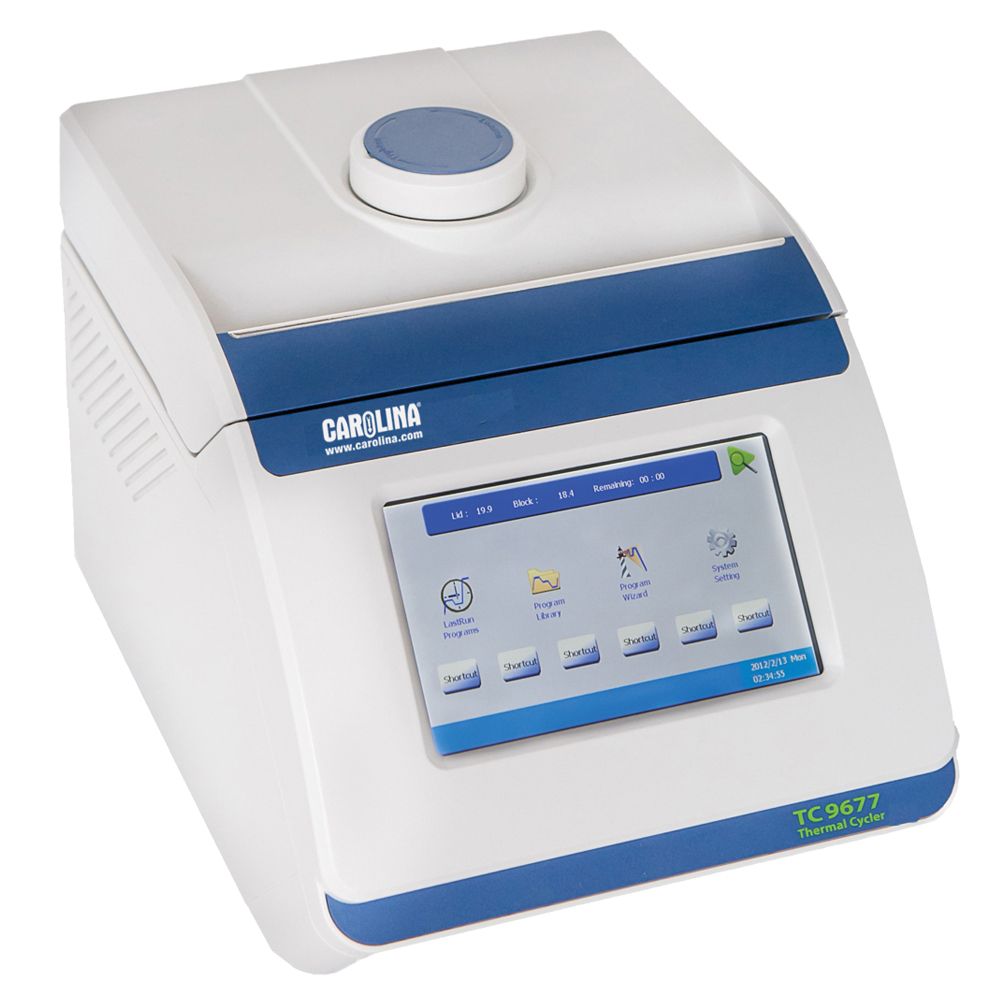

Carolina™ Touchscreen Thermal Cycler, US Plug

Item # 216295 Exclusive

The Carolina™ Touchscreen Thermal Cycler is a feature-packed unit ideal for classrooms and laboratories. Combining intuitive touchscreen controls, exceptionally fast cycling times, an easy-to-use interface, fully adjustable heated lid, and a unique multiformat block that accepts 96 x 0.2-mL or 39 x 0.5-mL tubes or PCR plate all help make this unit an asset to any classroom or laboratory. It provides consistent, reliable results in an economical package.



This item will ship on or about 11/16/16

  • Intuitive touchscreen control
  • Program wizard for user-friendly protocol entry
  • Fully adjustable heated lid
  • Unique multiformat block for 0.2- or 0.5-mL tubes or PCR plates

The Carolina™ Touchscreen Thermal Cycler provides consistent, reliable results in an economical package. From its large touchscreen user interface to its unique multiformat block, this unit is loaded with features, making it a true asset to any laboratory or classroom.

A large, full-color touchscreen serves as the operations center where all functions are accessed. From the home screen, simply touch an icon to view the last run program, enter the program library, or use the program wizard to quickly enter a protocol. In addition, icons for favorite programs can be added for faster access.

The program wizard guides users through quickly setting up a protocol in a single screen. Once entered, programs are shown graphically and can be edited by simply touching the step that requires modification. Time and temperature increments can be built into programs, as can slower ramp rates. Storage capabilities are unlimited; programs can be stored in public folders, private (password-protected) folders, or on a flash drive. The full virtual keyboard allows for alphanumeric naming of programs and folders.

The fully adjustable heated lid prevents condensation and sample evaporation. Lid temperature can be programmed, and when the block temperature is below 35° C, the lid automatically shuts off. Block heating and cooling are precisely and accurately controlled within exceptionally tight tolerances by a proprietary algorithm that simulates sample temperature.

With the multiformat block, there is no need to purchase multiple interchangeable blocks. The unit has the flexibility to accept 96 x 0.2-mL tubes, 39 x 0.5-mL tubes, or a 96-well plate - all in the same sample block.

Unit is 115 V and comes with US plug.

  • This item is only available from Carolina Biological Supply Company.

Product Families Featuring This Item:

Item# 216295
Dimensions 10-1/5 x 14-1/5 x 9-9/10”
Electrical 115-V AC, 50/60 Hz
Increments/Decrements Yes, time and temperature
Lid Temperature 30 to 112° C, user adjustable
Power Failure Restart Yes
Ramp Rate 4° C/s (maximum)
Sample Capacity 96 x 0.2-mL tubes/strip tubes, 39 x 0.5-mL tubes, 1 x 96-well plate
Temperature Control Range 0 to 100° C
Temperature Control Simulated sample or block
Temperature Uniformity or Accuracy ±0.2° C/±0.2° C
Warranty 2 years
Weight 16 lb
