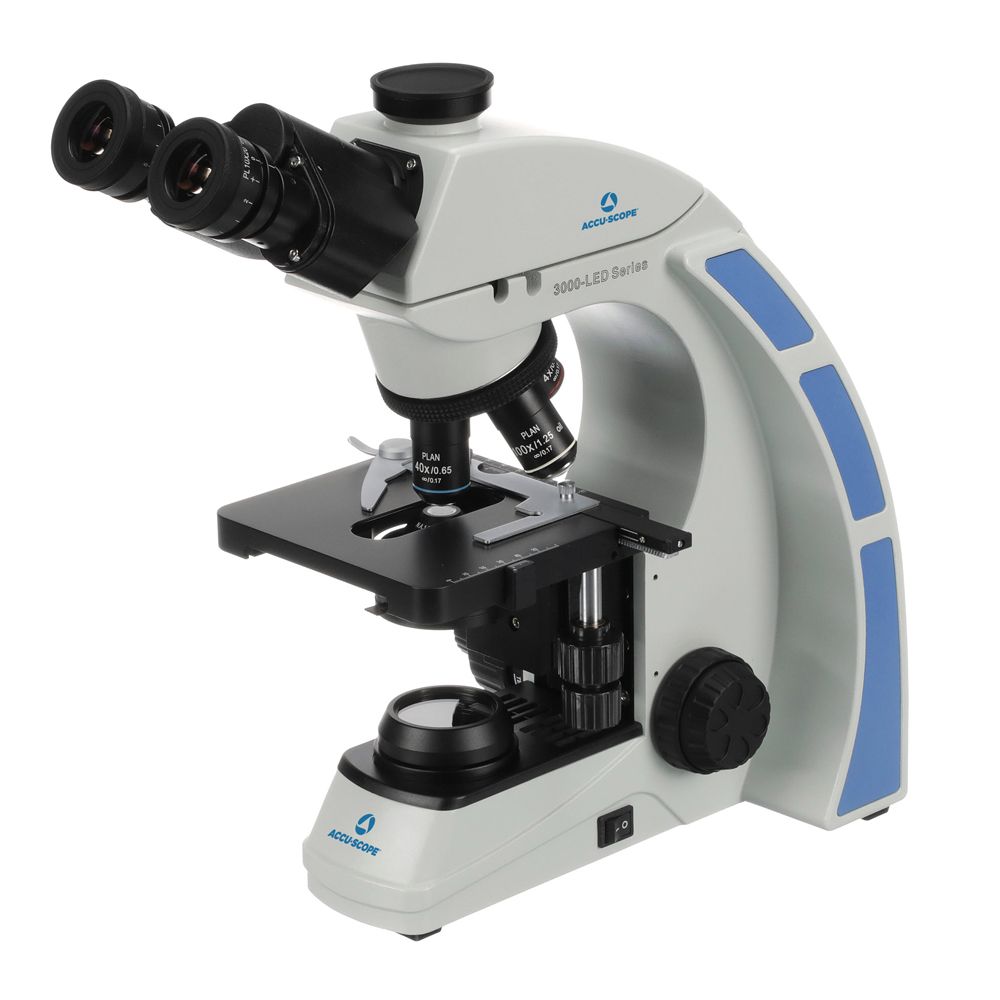

Advanced High School–College. The 3001-LED has a trinocular viewing head inclined at 30° and rotatable by 360°. It is equipped with HWF plan 10x/20-mm focusing eyepieces. It features a reversed quadruple nosepiece and 4x, 10x, spring-loaded 40xR, and spring-loaded 100xR oil-immersion infinity plan achromatic objectives. Also features a 140 x 132-mm mechanical stage, an N.A. 1.25 Abbe condenser, an iris diaphragm, coaxial coarse- and fine-focusing controls, and 3-W LED variable illuminator.

Product Details
Advanced High School–College. This microscope has a trinocular viewing head inclined at 30° and rotatable by a full 360°, ensuring optimal comfort and flexibility during observations. It is equipped with HWF plan 10x/20-mm focusing eyepieces; one eyepiece features a pointer and both are outfitted with eye guards. It features a reversed quadruple nosepiece and 4x, 10x, spring-loaded 40xR, and spring-loaded 100xR oil-immersion infinity plan achromatic objectives. Its 140 x 132-mm mechanical stage provides stability and precise specimen manipulation. With an N.A. 1.25 Abbe condenser and an iris diaphragm equipped with a slot for sliders, the 3001-LED optimizes light control and enhances image contrast. The coaxial coarse- and fine-focusing controls ensure smooth and accurate adjustments for sharp imaging. Additionally, its 3-W LED variable illuminator guarantees consistent and adjustable illumination levels for diverse observation needs. Includes a C-mount adapter.

Product Features

• Infinity optical system, f=180 mm; anti-mold
• Trinocular Siedentopf head, inclined 30°; interpupillary distance adjustment, 48–75 mm; 360° rotatable
• HWF plan 10x eyepieces, 20-mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece; eyepieces are locked-in to prevent classroom tampering; eyepiece accepts a Ø20.5-mm reticle
• Rear-facing, quadruple, ball-bearing nosepiece with positive click stops to ensure parcentration
• Infinity plan achromatic 4x, 10x, spring-loaded 40xR, and spring-loaded 100xR oil-immersion objectives
• Stage size, 140 x 132 mm with X/Y movement range of 76 x 50 mm
• N.A. 1.25 Abbe condenser (with slot for sliders) on a rack and pinion with iris diaphragm; glass lens in condensing system protects iris diaphragm from classroom tampering
• Cast alloy aluminum stand
• 3-W LED illumination with variable intensity control; LED bulb is rated for over 25,000 hours of continued use
• Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears; brass fine-focus gear
• Dust cover, immersion oil, instruction manual, and universal power supply (110–240 V) included
• 5-year limited warranty for parts, labor, and electronic components; 1-year warranty on LED bulb
• Dimensions, 15-1/5" L x 7-7/10" W x 15-2/5" H
• 16 lb
