Description

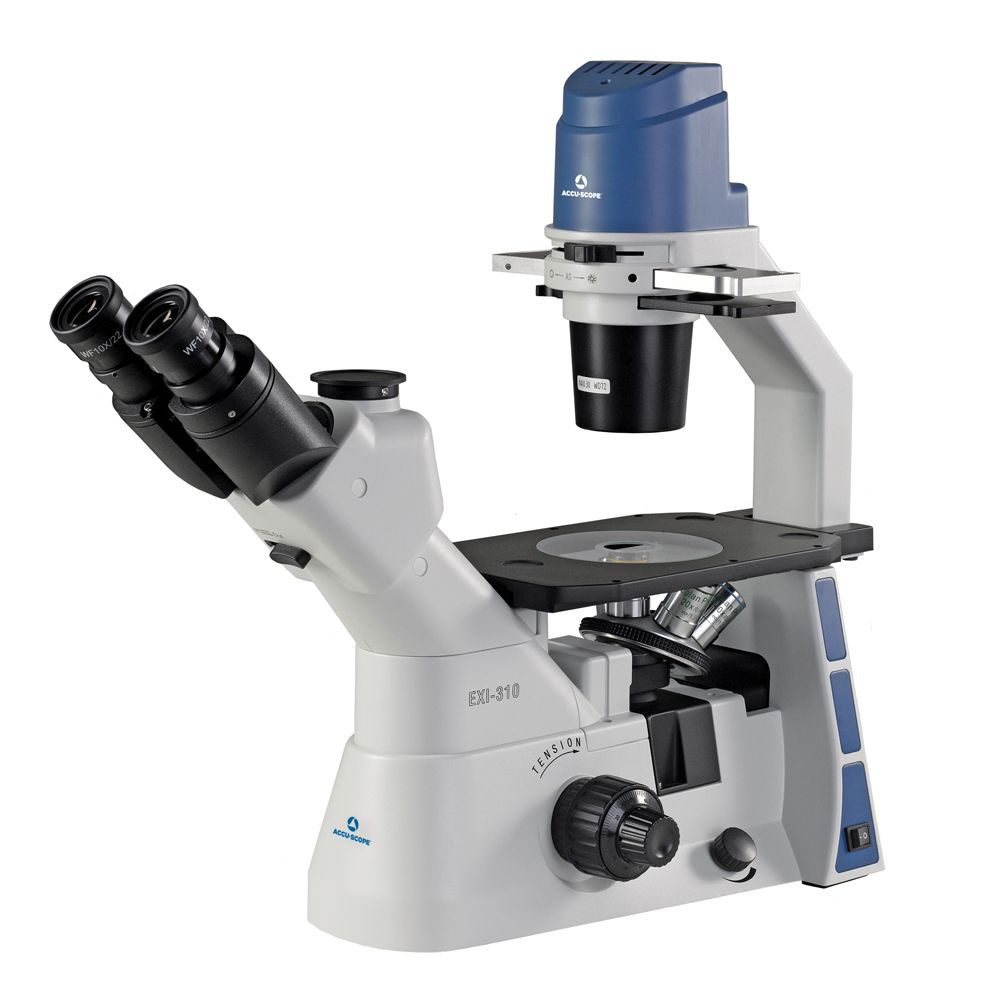

Advanced High School–College. Enhanced with advanced optics, the EXI-310-PH boasts WF10x/22-mm eyepieces for precise viewing. Its infinity-corrected LWD plan achromat 4x and LWD plan phase 10x and 20x objectives provide exceptional clarity and detail. It features a fixed, plain stage for stability; an ELWD condenser with an N.A. of 0.3; and a working distance of 72 mm. Also features a phase slider equipped with 4x/10x and 20x/40x phase annuli and a variable 5-W LED illuminator.
Product Details
Advanced High School–College. Enhanced with advanced optics, this inverted trinocular microscope boasts WF10x/22-mm eyepieces for precise viewing. Its infinity-corrected LWD plan achromat 4x and LWD plan phase 10x and 20x objectives provide exceptional clarity and detail. It features a fixed, plain stage for stability, an ELWD condenser with an impressive N.A. of 0.3, and with a working distance of 72 mm, this microscope ensures optimal specimen illumination and imaging. Also features a phase slider equipped with 4x/10x and 20x/40x phase annuli that allows for versatile imaging options. Additionally, its variable 5-W LED illuminator offers customizable lighting for superior observation and analysis.
Product Features
- AIS infinity optical system; anti-fungal
- Brightfield, phase contrast imaging
- Trinocular Siedentopf head, inclined 45°; interpupillary distance adjustment, 54–75 mm; eyepiece/camera port (standard): 100/0:80/20
- WF10x/22-mm field of view focusable eyepieces with eye cushions (optional 15x/16 mm and 20x/12.5 mm available)
- Side-facing, quintuple nosepiece
- LWD plan achromatic 4x and LWD plan phase 10x and 20x objectives
- Fixed, plain stage with glass and aluminum insert plates; size, 160 x 250 mm (optional attachable mechanical stage right-hand coaxial control with movement; range, 120 x 78 mm)
- ELWD condenser with N.A. of 0.3; WD, 72 mm
- Pre-centered phase slider 4x/10x, 20x/40x annuli and BF position; secondary slider for filters for enhanced illumination techniques
- Cast alloy aluminum stand
- 5-W LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use; universal power supply, 110–240 V
- Coaxial coarse- and fine-focus with adjustable tension control; all brass gears
- Green interference and ground-glass filters (550 nm), dust cover, and instruction manual
- 5-year limited warranty for parts, labor, and electronic components; 1-year warranty on LED bulb
- Dimensions, 515 mm L x 248 mm W x 473 mm H (without fluorescence)
- Weight, 21.5 lb
