Description

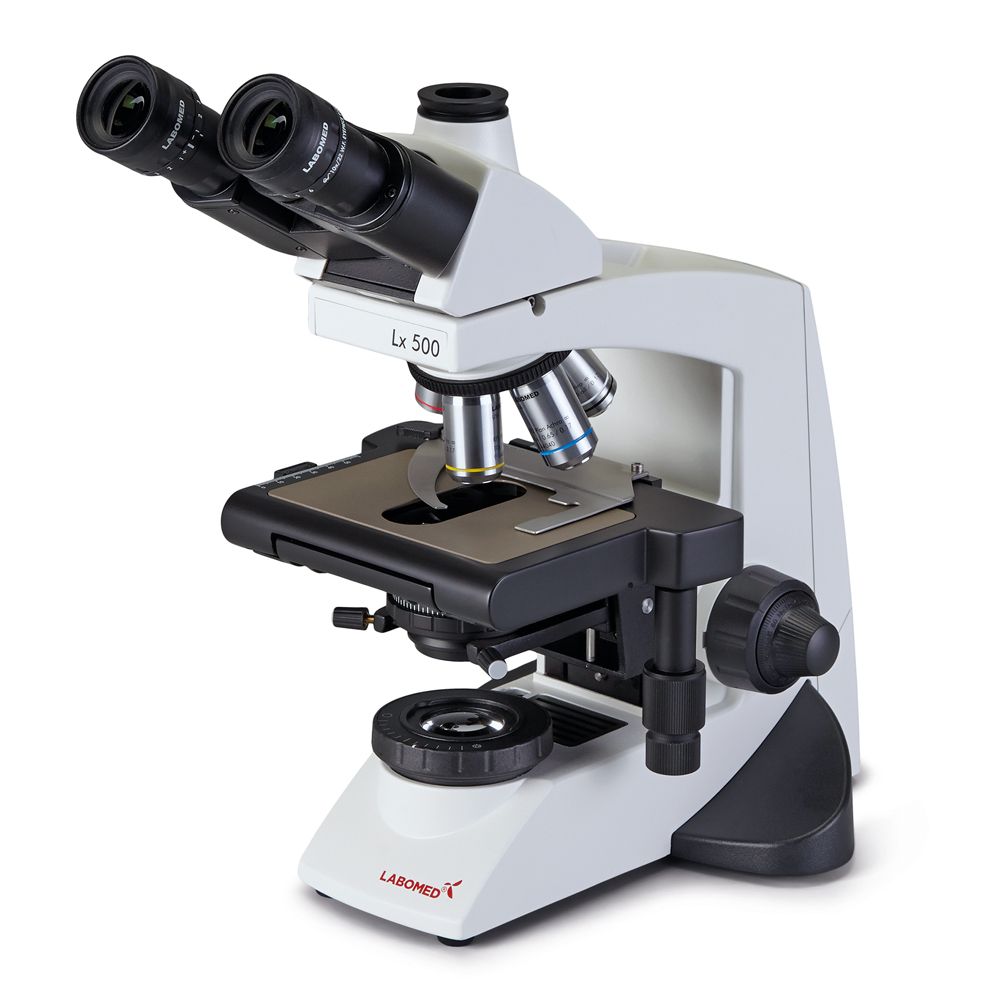

Advanced High School–College. The LABOMED® Lx 500 Clinical Trinocular Microscope is the outcome of world-class technologies and design innovations. Highly modular and accessory friendly, the Lx 500 is a versatile and fully extendable clinical microscope that boasts graceful symmetry and performance thanks to its ergonomic and optical features.
Product Details
Advanced High School–College. The LABOMED® Lx 500 Clinical Trinocular Microscope is the outcome of world-class technologies and design innovations. Highly modular and accessory friendly, the Lx 500 is a versatile and fully extendable clinical microscope that boasts graceful symmetry and performance thanks to its ergonomic and optical features.
Product Features
Single-mold, sturdy stand with anti-rust materials; extended base for better stability
Reverse-angle, quintuple nosepiece (ball-bearing type) with click stops and rubber grip
RP2 infinity-corrected Plan achromatic DIN** 4x, 10x, 40x (spring-loaded), 100x (spring-loaded, oil-immersion) objectives; antifungal coated
Coaxial coarse and fine focusing on gear systems for smooth operation; fine adjustment, 0.3 mm/rotation
The x-axis, double-plate, ceramic stage is rackless; stage size, 200 x 160 mm; X-Y travel range, 76 x 50 mm; double specimen holder
Flip-top 1.25 N.A. Abbe substage condenser with aspheric lens; iris diaphragm with blue daylight filter; rack and pinion movements on stainless steel guides
Trinocular; 30° inclinable; 360° rotatable; interpupillary distance, 47–75 mm (with height adjustment)
Focusable, 10x/22-mm widefield eyepieces with foldable eye guards; antifungal coated
Universal input 100- to 240-V AC; 50/60 Hz; built-in voltage stabilizer; built-in Li-ion battery and AC adapter/charger for cordless and corded use
True Köhler illumination with LED lamp and variable illumination control
**DIN: Deutsche Industrie Normen, an industry standard
