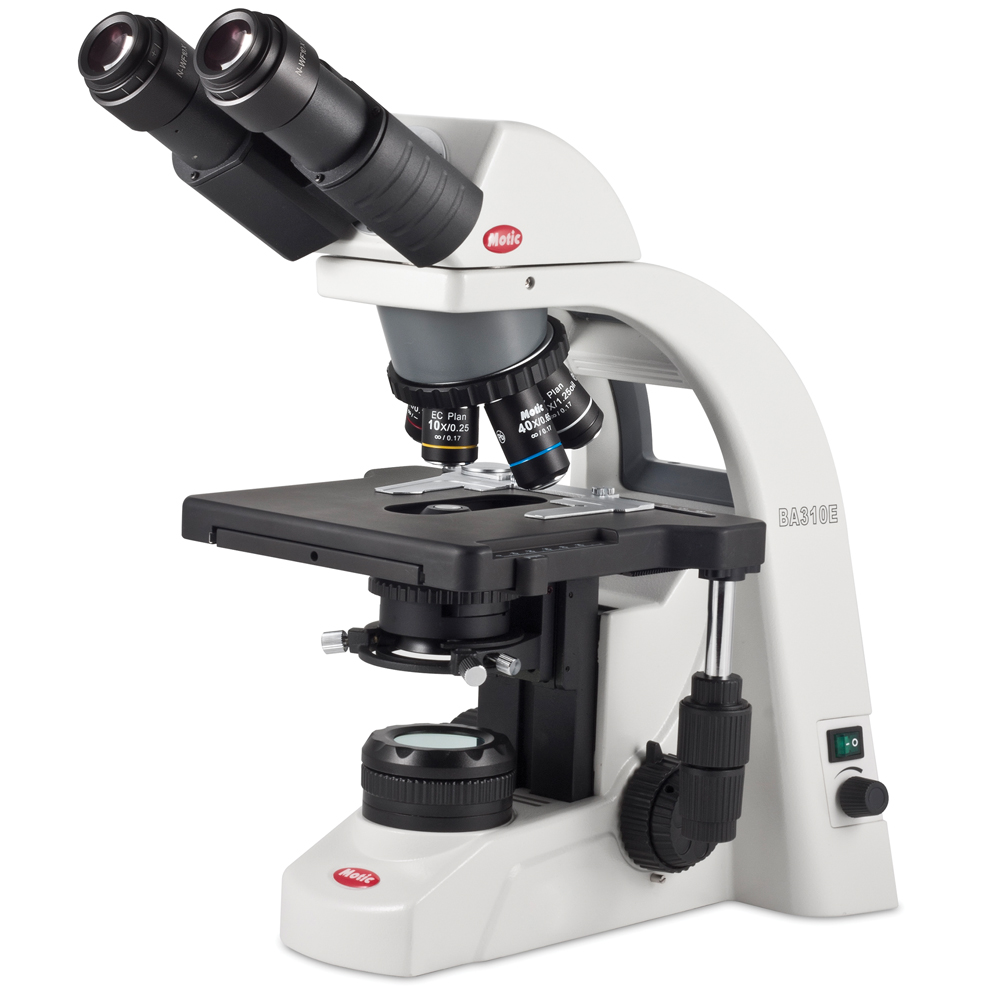

Advanced High School and College. One of Motic's most advanced models, this Elite series microscope features Motic's Infinity Optical System and improved CCIS® (Color Corrected Infinity Optical System) EC plan objective lenses for superior image clarity, field flatness, and contrast. Full Koehler configuration 3-W LED lighting provides cool balanced illumination to clarify even weakly stained specimens.

Advanced High School and College. This Elite series microscope is one of Motic's most advanced models. It features Motic's Infinity Optical System and improved CCIS® (Color Corrected Infinity Optical System) EC plan objective lenses for superior image clarity, field flatness, and contrast. Its 3-W LED lighting (full Koehler configuration) provides cool balanced illumination to clarify even weakly stained specimens. Additional contrast methods such as dark field, polarization, and phase contrast microscopy are easily performed with optional accessories (not included). With a new stage that eliminates the bulky gear rack, this Elite model provides convenient X-Y stage movement.

• 30° inclined binocular head with 360° swiveling eyepiece tubes for comfortable viewing
• Interpupillary distance adjustment from 48 to 75 mm
• Widefield N-WF10x/20-mm eyepieces with diopter adjustment
• Reversed quintuple nosepiece with click stops for precise magnification changes
• CCIS® EC plan 4x, 10x, 40x, and 100x (oil-immersion) objectives
• Coaxial coarse- and fine-focusing system with 2-µ minimum increment and tension adjustment
• Large 180 x 170-mm stage with low-position coaxial controls; travel range, 80 x 55 mm
• Focusable, centerable NA 0.90/1.25 Abbe condenser with iris diaphragm and slider slot
• Collector lens assembly with screw-on filter holder
• Built-in transmitted 3-W LED Koehler illumination (6,000 K)
