Advanced High School and College. The Panthera S series is designed with practicality and functionality in mind. It includes a 360° rotatable trinocular Siedentopf head especially configured for space-saving storage. Plan SC optics offer unprecedented optical quality. A low-power LED illumination system allows the Panthera S to run on an optional mobile battery pack for several hours. The trinocular head design is perfect for adding digital microscopy cameras.

Product Details
The perfect lab mate

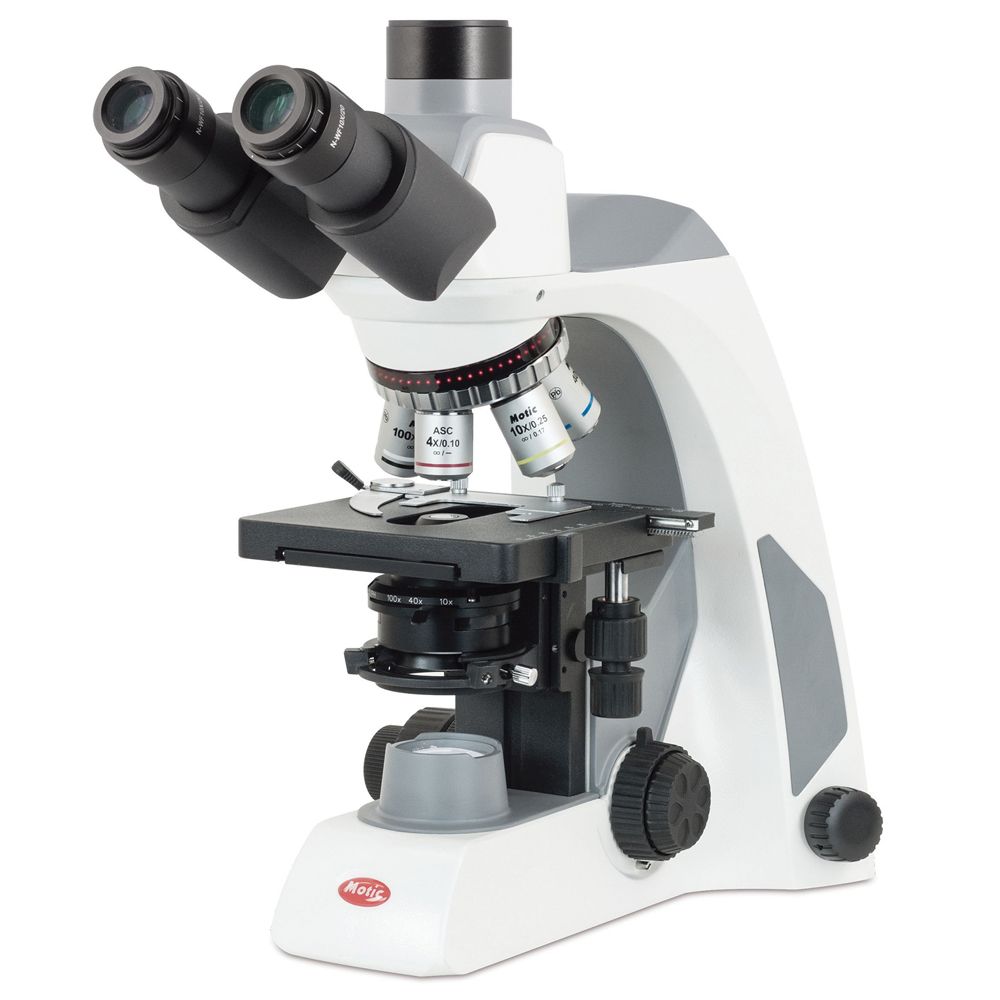

Advanced High School and College. The Panthera S series is designed with practicality and functionality in mind. After analyzing every detail of how students and professionals are using microscopes, Motic® redesigned the Panthera S from the ground up. It includes a 360° rotatable trinocular Siedentopf head especially configured for space-saving storage. Plan SC optics offer unprecedented optical quality in its class and support other contrast techniques with optional accessories such as phase contrast, darkfield, and polarizing. An extremely efficient low-power LED illumination system allows the Panthera S to run on an optional mobile battery pack for several hours, while an LED nosepiece illuminator displays the light intensity of the microscope. The trinocular head design is perfect for adding digital microscopy cameras. Order the optional C-mount adapter (item #591082) for connecting a C-mount-style camera. A USB output jack is built into the base for supplying power to optional external cameras such as Moticams.

Product Features

• Objective Lenses: Motic’s Color Corrected Infinity Optical System (CCIS®). Plan SC achromat objectives 4x, 10x, 40xs, 100xs oil provide higher contrast images and a flatter field of view compared to standard achromat objectives.
• Nosepiece: Reversed quadruple nosepiece provides easier slide manipulation.
• Head: 25° inclined, 360° rotatable trinocular Siedentopf head provides comfortable viewing with less eye strain during extended use.
• Eyepieces: Interpupillary distance is adjustable from 48 to 75 mm. Dual diopters of ±5. N-WF10x/20 eyepieces.
• Total Magnification: 40x; 100x; 400x; 1,000x.
• Specimen Stage: Mechanical stage is 140 x 135 mm with X-Y travel range of 75 x 50 mm. Upper limit stop is preset to protect slides and objectives from damage.
• Stand: Effective ergonomics and maximum expandability are built in. The wide arm provides strength and rigidity. Additionally, the inverted “Y” support in the back of the microscope provides extra lateral stability.
• Focusing: Fine and coarse coaxial focusing with tension adjustment for easier focus control at higher magnifications. Minimum fine focus precision is 2 µm. Z-axis movement is 25 mm.
• Condenser: NA 0.90/1.25 Abbe condenser with slider slot.
• Illumination: 0.5 W LED, fixed Koehler. Nosepiece has LED light intensity indicator. 110- to 240-V power supply (CE compliant).
• Size: 11-1/10” L x 8-3/10” W x 15-3/5” H; wt, 17 lb.
• Warranty: 5-year warranty excluding electrical parts.
