Description
Grade 12–College. This advanced biological microscope features a binocular head; 4 N-Plan achromatic lenses (1,000x); FN18 high-eyepoint eyepieces; finite optical system; coaxial focusing; mechanical stage; Abbe condenser; and powerful, uniform XLED2 illumination with white 3-W LED lighting that is long-lasting. Slim and easy to carry, it is equipped with all the main controls to start learning how to use an advanced microscope. With 100x objective for oil and water use.
Tariffs have driven up the cost of this item significantly. We apologize for the price increase. We are absorbing some of the impact to help teachers but are forced to pass most of it along.
Product Details

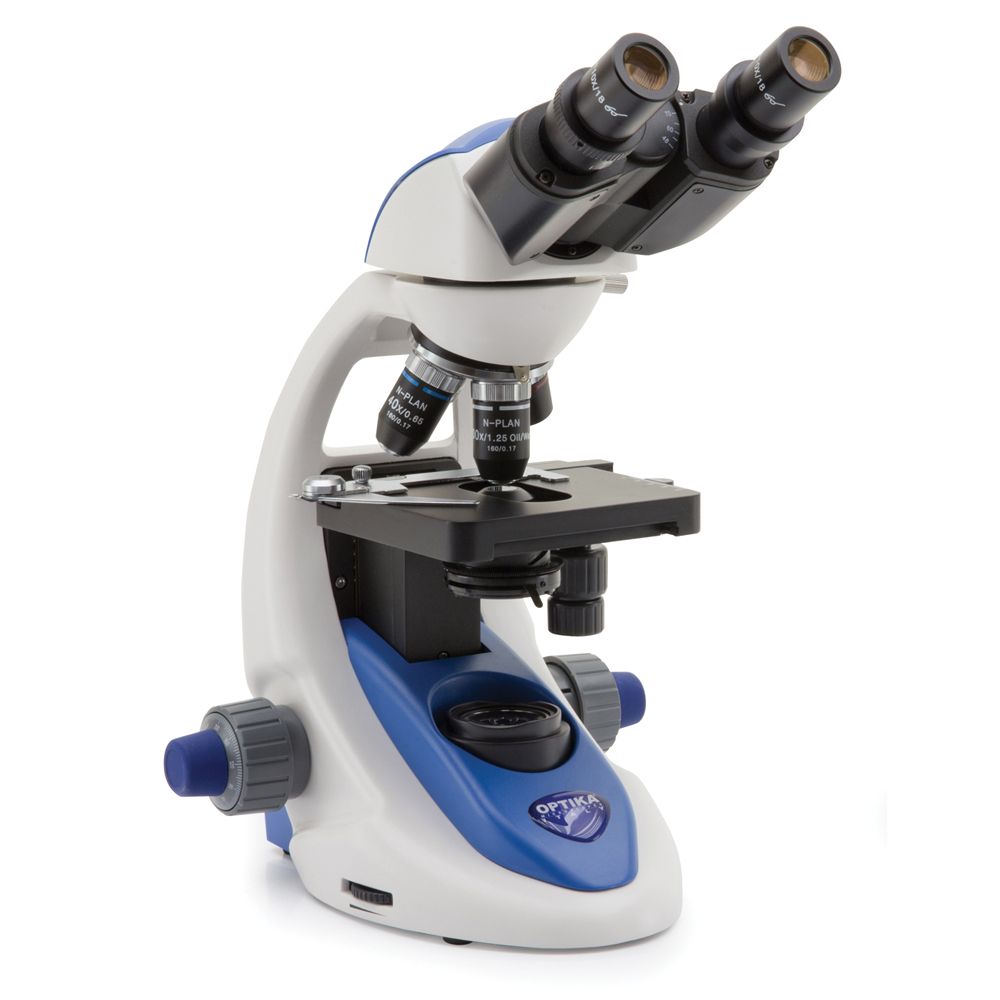

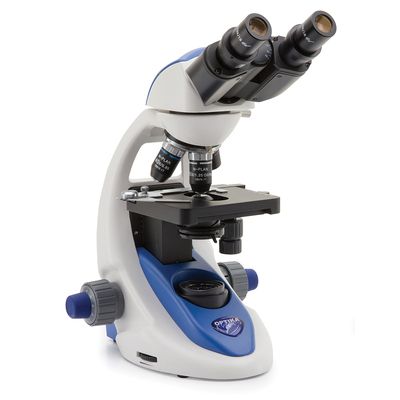

Grade 12–College. The OPTIKA® B-192PL Advanced Biological Microscope features a binocular head, 4 N-PLAN achromatic lenses (1,000x); FN18 high-eyepoint eyepieces; finite optical system; coaxial focusing, mechanical stage; Abbe condenser; and powerful, uniform XLED2 illumination with white 3-W LED lighting that is long-lasting to provide over 20 years of use. Slim and easy to carry, it is equipped with all the main controls to start learning how to use an advanced microscope. With 100x objective for oil and water use. Oil represents the best media for high numerical aperture, while water combines results with convenience for educational purposes. Save time and forget about tedious cleaning and maintenance. Save money with no additional expenses due to inappropriate cleaning.
Product Features
- Binocular head is 30° inclined; 360° rotating
- Left eyepiece features dioptric adjustment
- WF10x/18-mm, high-eyepoint eyepieces; secured by screw
- Revolving reversed nosepiece has quadruple ball bearings
- N-Plan achromatic objectives 4x/0.10 WD (15.2 mm), 10x/0.25 WD (5.5 mm), 40x/0.65 WD (0.45 mm), 100x/1.25 WD (0.13 mm; oil/water); all have anti-fungus treatment
- Mechanical stage size, 125 x 115 mm; X-Y movement range, 70 x 30 mm; Vernier® scale on the 2 axes; accuracy, 0.1 mm
- Coaxial coarse- and fine-focusing mechanism with limit stop to prevent contact between objective and specimen; adjustable tension of coarse-focusing knob
- N.A. 1.25 Abbe condenser with iris diaphragm; pre-centered; focusable
- XLED2 illumination with white 3-W LED lighting and brightness control; color temperature, 6,300 K
- External power supply, multi-plug (EU, UK, US); 100- to 240-V AC/5-V DC
Specifications
- What’s Included:
- Features, Dimensions & Weight:
- Return Policy:
If for any reason you are not satisfied with this item, it is eligible for a return, exchange, refund, or credit up to 180 days from date of purchase. Restrictions may apply. Returns & Exchanges Policy.
