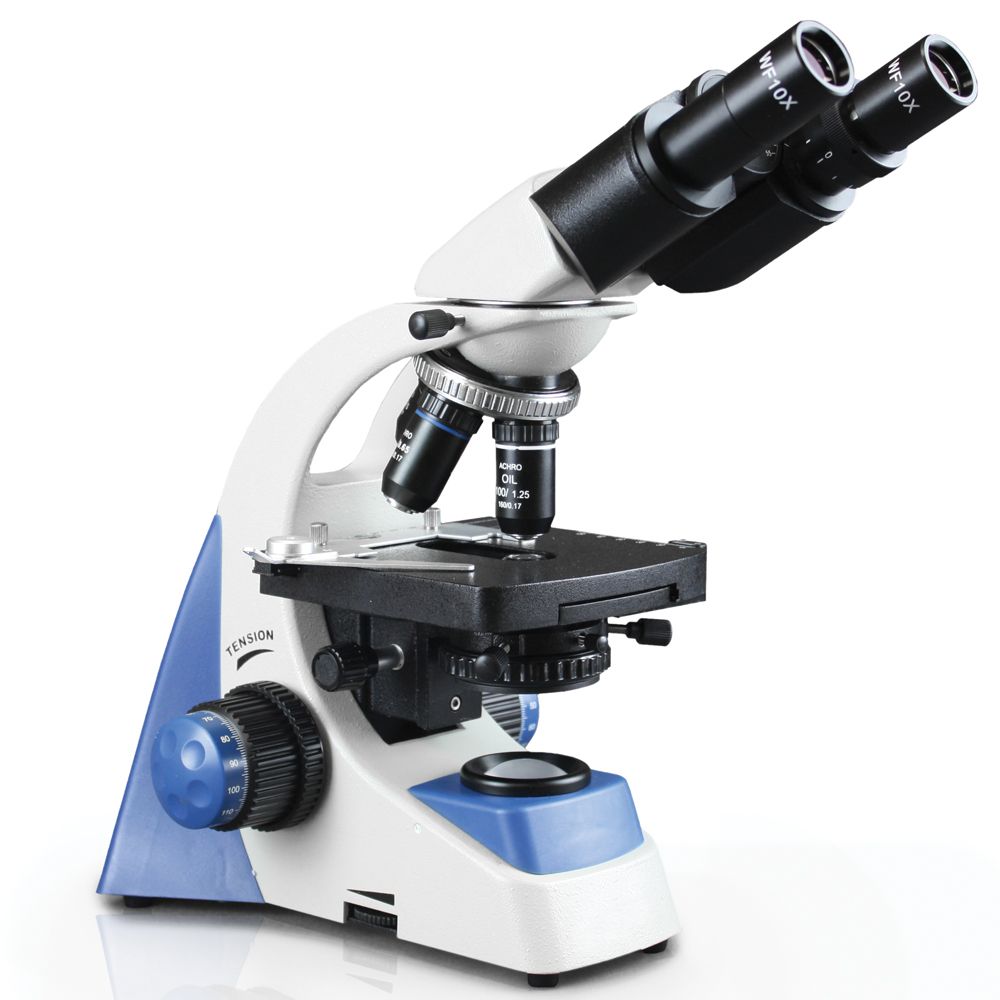

Walter 50 Series Binocular Microscope

Product Highlights
  • Features a Siedentopf-design binocular head for less eye strain
  • Nosepiece has a reversed design to facilitate easy slide changes
  • Cool LED illumination is excellent for viewing living specimens
(in stock)


Grade 9–College. This ergonomically designed, full-featured, compact microscope offers solid performance for years to come. The microscope's robust, super-smooth mechanical controls make it easy to use. Its built-in handle, cool variable LED illumination, and 4 high-performance objective lenses provide excellent clarity in observation. The 30° inclined Siedentopf-design binocular head rotates 360° for comfort and ease of use. Other features include:

  • One-piece, ergonomically designed metal frame, arm, and base
  • Widefield 10x/18-mm eyepieces, diopter adjustment on right eyepiece tube, and calibrated pointer on 1 eyepiece
  • Interpupillary adjustment from 55 to 75 mm
  • Reversed quadruple nosepiece with DIN 4x, 10x, 40xR, 100xR (oil-immersion) achromatic objectives (DIN: Deutsche Industrie Normen, an industry standard)
  • 125 x 125-mm built-in double-layer mechanical stage with X–Y calibrated movement and 60 x 40-mm cross-travel range
  • Low-position coaxial coarse- and fine-focus controls allow for faster focusing at higher magnifications
  • Rack-and-pinion coarse-focus adjustment stops at both travel ends to prevent damage to microscope gears
  • Tension adjustment eliminates focus drift
  • Focusable 1.25 N.A. Abbe condenser with rack-and-pinion iris diaphragm with 2- to 30-mm adjustable aperture
  • Dust cover, foam case, and instruction manual
  • Limited 5-year warranty


What’s Included:
  • 1 Walter 50 Series Binocular Microscope
  • 1 Dust Cover
  • 1 Foam Case
  • 1 Instruction Manual
Features, Dimensions & Weight:
  • Diaphragm: Iris with 1.25 N.A. Abbe condenser
  • Eyepieces (2): Widefield 10x/18-mm eyepieces with calibrated pointer
  • Focus: Coaxial coarse- and fine-focus controls
  • Head Type: Siedentopf-design binocular head
  • Illumination: LED
  • Magnification: 40x, 100x, 400x, and 1,000x
  • Objective Lens: DIN 4x, 10x, 40xR, 100xR oil-immersion (DIN: Deutsche Industrie Normen, an industry standard)
  • Size: 14” H x 6” W x 8” D
  • Stage: Mechanical
  • Warranty: 5-year limited
  • Weight: 8 lb
