Grade 9–College. This ergonomically designed, full-featured, compact microscope offers solid performance for years to come. The microscope's robust, super-smooth mechanical controls make it easy to use. Its built-in handle, cool variable LED illumination, and 4 high-performance objective lenses provide excellent clarity in observation. The 30° inclined Siedentopf-design trinocular head rotates 360° for comfort and ease of use.

Product Details

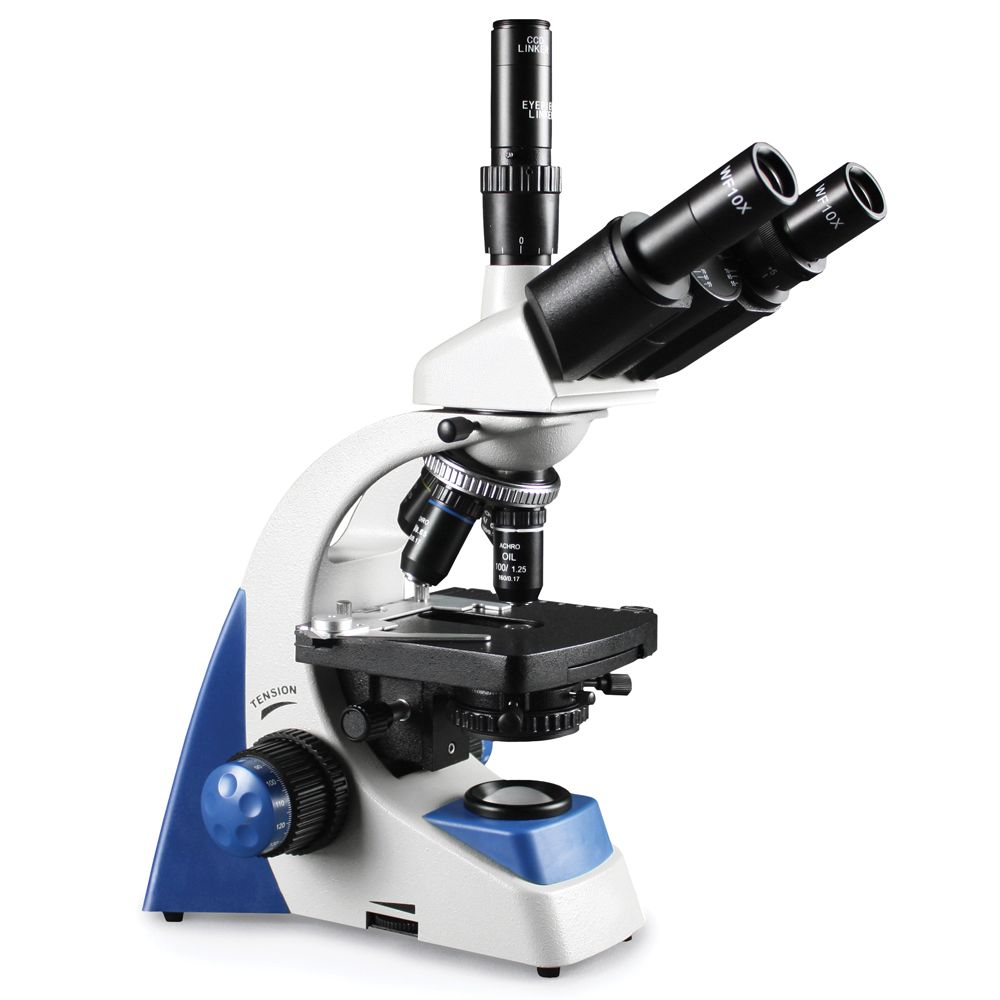

Grade 9–College. This ergonomically designed, full-featured, compact microscope offers solid performance for years to come. The microscope's robust, super-smooth mechanical controls make it easy to use. Its built-in handle, cool variable LED illumination, and 4 high-performance objective lenses provide excellent clarity in observation. The 30° inclined Siedentopf-design trinocular head rotates 360° for comfort and ease of use. The trinocular head includes a 1x C-mount adapter that allows the microscope to accommodate digital cameras, such as Motic® Moticams, for photo and video documentation and image analysis.

Product Features

• One-piece, ergonomically designed metal frame, arm, and base
• Widefield 10x/18-mm eyepieces, diopter adjustment on right eyepiece tube, and calibrated pointer on 1 eyepiece
• Interpupillary adjustment from 55 to 75 mm
• Reversed quadruple nosepiece with DIN** 4x, 10x, 40xR, 100xR (oil-immersion) achromatic objectives
• 125 x 125-mm built-in double-layer mechanical stage with X–Y calibrated movement and 60 x 40-mm cross-travel range
• Low-position, coaxial coarse- and fine-focus controls allow for faster focusing at higher magnifications
• Rack-and-pinion, coarse-focus adjustment stops at both travel ends to prevent damage to microscope gears
• Tension adjustment eliminates focus drift
• Focusable 1.25 N.A. Abbe condenser with rack-and-pinion iris diaphragm with 2- to 30-mm adjustable aperture
• Dust cover, foam case, and instruction manual
• Limited 5-year warranty

**DIN: Deutsche Industrie Normen, an industry standard.
