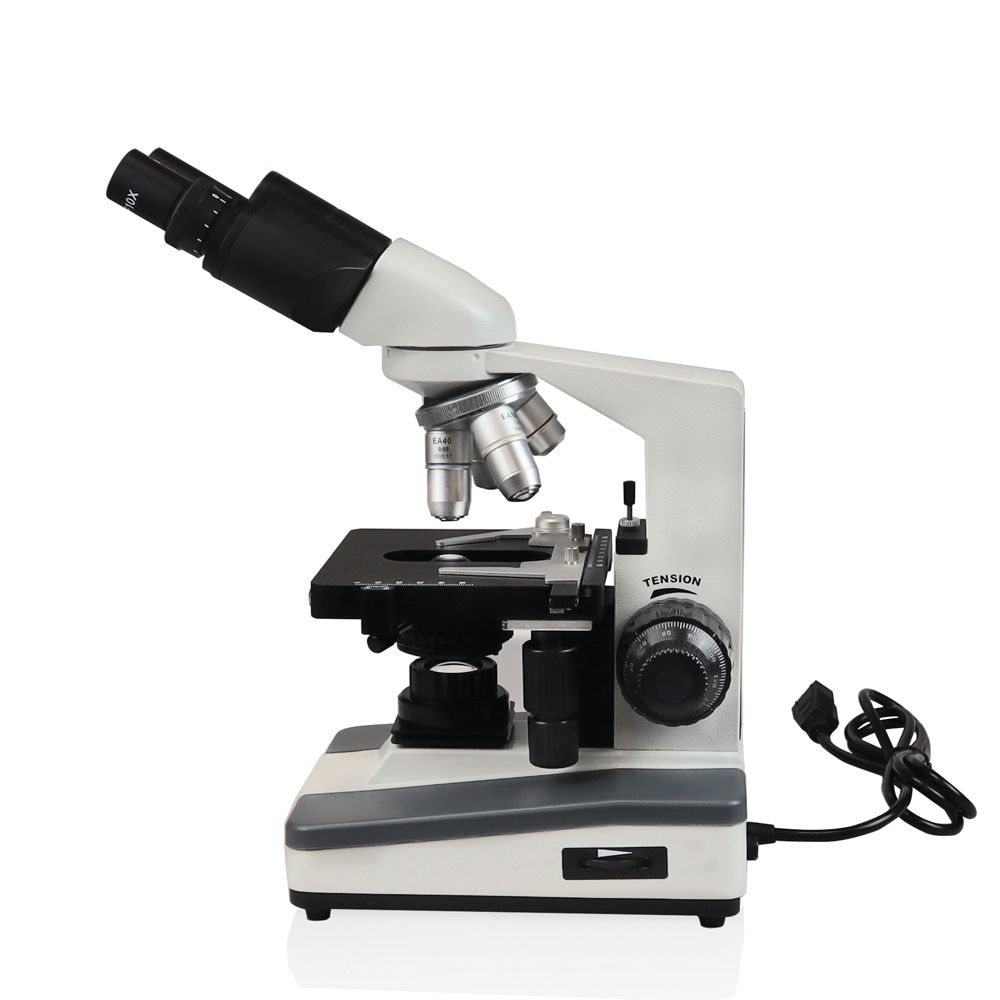

Grade 9–College. This M Series microscope is truly innovative—from its calibrated pointer, which gives actual measurements rather than relative sizes, to a reverse nosepiece that allows more working space. Its uniquely designed low-profile base provides stability and comfortable hand positions for the operation of focus controls. Features include 4 objectives, built-in mechanical stage, bright LED illumination, coaxial focus controls, and a 5-year warranty.

Product Details
Grade 9–College. Innovation describes this M Series microscope—from its calibrated pointer, which gives actual measurements rather than relative sizes, to a reverse nosepiece that allows more working space. Its uniquely designed low-profile base provides stability and comfortable hand positions for the operation of focus controls. Features include 4 objectives, built-in mechanical stage, bright LED illumination, coaxial focus controls, and a 5-year warranty.

Product Features

• Siedentopf-design binocular head with diopter adjustment on the left eye tube provides comfortable, extended viewing
• Eyepieces are 10x widefield, with a calibrated pointer
• DIN** achromatic, parcentered, parfocal 4x, 10x, 40xR, and 100xR oil-immersion objectives
• Large, built-in mechanical stage (5-1/2 x 5-1/4") allows for smooth X–Y travel in 1-mm graduations
• Rack-and-pinion, adjustable 1.25 N.A. Abbe condenser and turn-wheel opening iris diaphragm with plastic shield protector for optimal resolution and image contrast
• LED Kohler illumination with intensity control provides high-contrast and evenly distributed light to the sample
• Comes with dust cover and instructions
• Size, 15" H x 8" W x 10" D; wt, about 14 lb

**DIN: Deutsche Industrie Normen, an industry standard.
