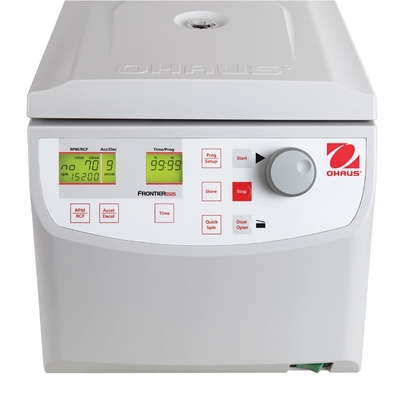

OHAUS Frontier™ 5000 Benchtop Micro Centrifuge Plus

(ships from manufacturer, est arrival 9/1/22)


Dependable Benchtop Micro Centrifuge, Ideal for High-Speed Lab Applications
Model FC5515. This Frontier™ Micro centrifuge delivers high-speed operation for a range of essential lab applications, such as DNA/RNA preparation, ultrafiltration, and more. Available optional biocontainment rotors enable research involving hazardous samples. Technology drives the high sample throughput. A brushless motor, 10 acceleration and deceleration settings, and memory for up to 99 commonly used parameters are some of the features that propel performance.

Engineered with convenience of operation in mind, the centrifuge features an intuitive interface, with all key parameters immediately accessible for observation and adjustment. The compact design saves valuable bench space in the lab. Safety features include a rotor imbalance sensor and motorized lid locking system.

Speed range is 200 to 15,200 rpm, with a maximum relative centrifuge force of 21,953 g. Holds 44 x 1.5/2.0-mL microtubes and 12 x 5-mL tubes but also can support PCR strips and hematocrit capillary tubes when used with additional rotor options. Note: A rotor is needed but not included; choose from items #217224, #217225, and #217226. Tube adapters, items #217261 and #217262, may be purchased separately for use with these rotors.

Additional specifications:
Memory: Stores up to 99 parameter presets
Acceleration Gears: 10
Deceleration Gears: 10
Lid Lock: Motor driven
Pre-Cool Time: Not applicable
Rotor Recognition Method: Manual
Safety Certification: CE; FCC
Working Environment: 36 to 95° F, 80% RH, non-condensing (2 to 35° C, 80% RH, non-condensing)


What’s Included:
  • 1 Centrifuge
  • 1 Power Cable
  • 1 Rotor Key
  • 1 Instruction Manual
Needed But Not Included:
  •  Rotor(s)
Features, Dimensions & Weight:
  • Dimensions: 11-1/2" H x 15-1/2" L x 11-3/10" W (292 mm H x 393 mm L x 287 mm W)
  • Display: LCD with backlight
  • Maximum G-Force: 21,953 x g
  • Noise Level: ≤60 ±2 dB(A)
  • Power Requirements: 120 V, 50/60 Hz; 280 W; AC power cable included
  • Rotor Capacity: Angle 24 x 1.5/2.0 mL; angle 24 x 1.5/2.0 mL sealable; angle 12 x 5 mL sealable; angle 44 x 1.5/2.0 mL; angle 4 x 8 place PCR strips; angle 30 x 1.5/2.0 mL sealable; hematocrit rotor, 24 x capillaries
  • Speed Range: 200 to 15,200 rpm
  • Timer: 10 sec to 99 h 59 min 59 sec or continuous
  • Weight: 38 lb (17 kg)
  • expand to see full list
Return Policy:

This product is backed by our 100% Satisfaction Guarantee. If for any reason you are not satisfied with any item, you may return it for a replacement, a refund, or credit. Read more about our Return and Exchange Policy  »
